TYPE:MPX-1
return to Metallized Polypropylene Film page
are constructed with metalized polypropylene film and metalized polyeste film dielectric, tinned copper wire leads, encapsulated in the plastic case with epoxy resin sealed, in non-inductive type. (FOR INTERFERENCE SUPPERSSION CLASS X1).

FEATURES:
Self-healing properties.
Active and passive flame retardant.
Overvoltage stress withstanding.
Meet standards of: VDE, SEC, SEMKO, NEMKO, DEMKO, FIMKO, UL, CSA.

APPLICATIONS:
They are ideal for line-by-pass,across-the-line,antenna couping,spark killer circuits, switching power supply and available for EMI filter application.

SPECIFICATION:
1. Operating temperature : -40¢XC ~ +100¢XC
2. Capacitance range

: .0047uF ~ 4.7uF
3. Capacitance tolerance : J=¡Ó5%, K=¡Ó10%, M=¡Ó20%.
4. Rated voltage (RV) : 300VAC 50Hz ~ 60Hz
5. Dissipation factor (DF) : 0.1% max at 1KHz 25¢XC
6. Testing voltage (TV) : 160% of RV for 60sec
7. Insulation resistance (IR) : C¡Ø.33uF, IR¡Ù30000M£[
  (measured at RV or 500Vdc   C¡Ö.33uF, IR¡Ù10000M£[.
  whichever is smaller, at 25¢XC)

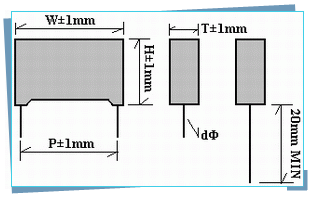

DIMENSIONS:
unit:mm

RV

300VAC

RV

300VAC

size
W
H
T
P
d£p

size
W
H
T
P
d£p
cap.
¡Ó0.5
¡Ó0.5
¡Ó0.5
¡Ó0.5
¡Ó0.05

cap.
¡Ó0.5
¡Ó0.5
¡Ó0.5
¡Ó0.5
¡Ó0.05
.0047
18.0
10.0
5.0
15.0
0.8
.39
26.5
17.0
8.5
22.5
0.8
.0056
18.0
10.0
5.0
15.0
0.8
.47
17.0
19.0
11.0
15.0
0.8
.0068
18.0
10.0
5.0
15.0
0.8
.47
26.5
17.0
8.5
22.5
0.8
.0082
18.0
10.0
5.0
15.0
0.8
.56
26.5
19.0
10.0
22.5
0.8
.01
18.0
10.0
5.0
15.0
0.8
.60
31.5
20.0
11.0
27.5
0.8
.012
18.0
10.0
5.0
15.0
0.8
.68
26.5
19.0
10.0
22.5
0.8
.015
18.0
10.0
5.0
15.0
0.8
.68
31.5
20.0
11.0
27.5
0.8
.018
18.0
10.0
5.0
15.0
0.8
.82
31.5
20.0
11.0
27.5
0.8
.022
18.0
12.0
5.0
15.0
0.8
1.0
30.0
21.0
11.5
27.5
0.8
.027
18.0
10.0
5.0
15.0
0.8
1.0
37.0
24.0
13.5
32.5
0.8
.033
18.0
10.0
5.0
15.0
0.8
1.2
37.0
24.0
13.5
32.5
0.8
.047
18.0
10.0
5.0
15.0
0.8
1.5
37.0
24.0
13.5
32.5
0.8
.056
18.0
10.0
5.0
15.0
0.8
1.8
37.0
26.5
16.0
32.5
0.8
.068
18.0
10.0
5.0
15.0
0.8
2.2
37.0
26.5
16.0
32.5
0.8
.082
17.0
11.0
5.0
15.0
0.8
2.7
37.0
28.5
18.0
32.5
0.8
.1
17.0
11.0
5.5
15.0
0.8
3.3
37.0
34.0
22.0
32.5
0.8
.12
18.0
12.0
6.0
15.0
0.8
3.3
51.0
27.5
17.3
47.5
0.8
.15
18.0
13.5
6.0
15.0
0.8
3.9
37.0
34.0
22.0
32.5
0.8
.22
17.0
15.5
7.5
15.0
0.8
3.9
51.0
27.5
17.5
47.5
0.8
.22
25.0
14.5
6.0
22.5
0.8
4.7
51.0
30.5
20.0
47.5
0.8
.27
26.0
16.5
7.0
22.5
0.8
5.6
51.0
34.0
22.5
47.5
0.8
.33
17.0
16.5
9.5
15.0
0.8
6.8
51.0
34.0
22.5
47.5
0.8
.33
26.5
16.5
7.0
22.5
0.8
1.0
51.0
43.5
29.0
47.5
0.8
Please contact us for special case or items not listed.
