EPOXY-COATED SOLID ELECTROLYTIC TANTALUM
return to Tantalum Capacitors page
Dimensions
CASE SIZE
D (max)
H (max)
P (¡Ó05mm)
d
A
4
6
2.5
0.5
B
4.8
7.2
2.5
0.5
C
5.5
8
2.5
0.5
D
6
9.4
2.5
0.5
E
7.2
11.5
5
0.5
F
8.2
12.5
5
0.5

Table E: Temperature Features
CAP(uF)
CHANGES OF CAP.¡]%¡^
Max D.F.(%) 100Hz
Max Current Leakage (uA)
-55¢XC
+85¢XC
+125¢XC
-55¢XC
+20¢XC
+85¢XC
+125¢XC
+20¢XC
+85¢XC
+125¢XC
¡Ø1.0
¡Ó10
¡Ó15
¡Ó25
4
2
4
6
Io¡Ø0.02CRVROR 1UA(whicheveris greater)
10 Io
12.5 Io
1.5-6.8
6
4
6
8
10-68
8
6
8
10
100-680
10
8
10
12

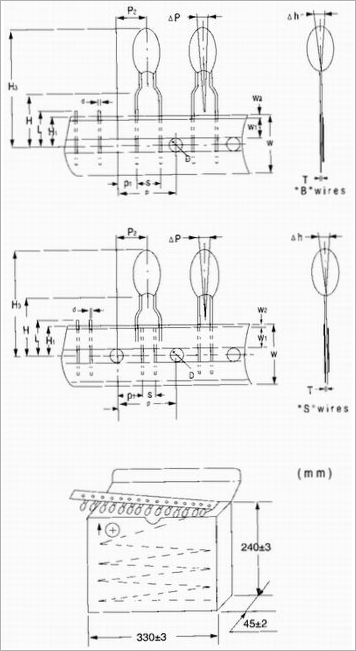

II. Tape & Ammo Packing (Conforming to: IEC286-2)
Item
Code
Dimension(mm)
Carrier tape width
W

18.0

+1.0

-0.5
Tape width
W1
 6.0¡Ó0.5
Tape position
W2
 1.0max
Feed hole diameter
D
 4.0¡Ó0.2
Feed hole pitch
P
 12.7¡Ó0.3
Hole center to lead
P1
 "S" wires: 5.05¡Ó0.7
"B" wires: 3.58¡Ó0.7
Hole center to component center
P2
 6.35¡Ó1.0
Lead wire clinch heigh
H
 16¡Ó0.5
Hole position
H1
 9.0¡Ó0.5
Base of component height
H2
 18mm
Component height
H3
 32.2max
Component alignment
¡µp
 0¡Ó1.3
¡µh
 0¡Ó2.0
Lead spacing
S

"S" wires: 2.5

+0.6

-0.1

"B" wires: 5.0

+0.6

-0.1
Lead diameter
d
 0.5¡Ó0.05
Length of snipped lead
L
 11.0max
Carrier tape thickness
T
 0.5¡Ó0.1

Case Code
A, B, C
D
E
QTY.(Pcs/Box)
3000
2500
2000
